EXCURSION REFERENCE SERIE ECO - 2Ohm
20cm, 150 RMS / 400 Watt @ 95dB 1W/m
88mm ET (OEM Upgrade Speaker)
35 Hz - 21 KHz Frequency Response - SET

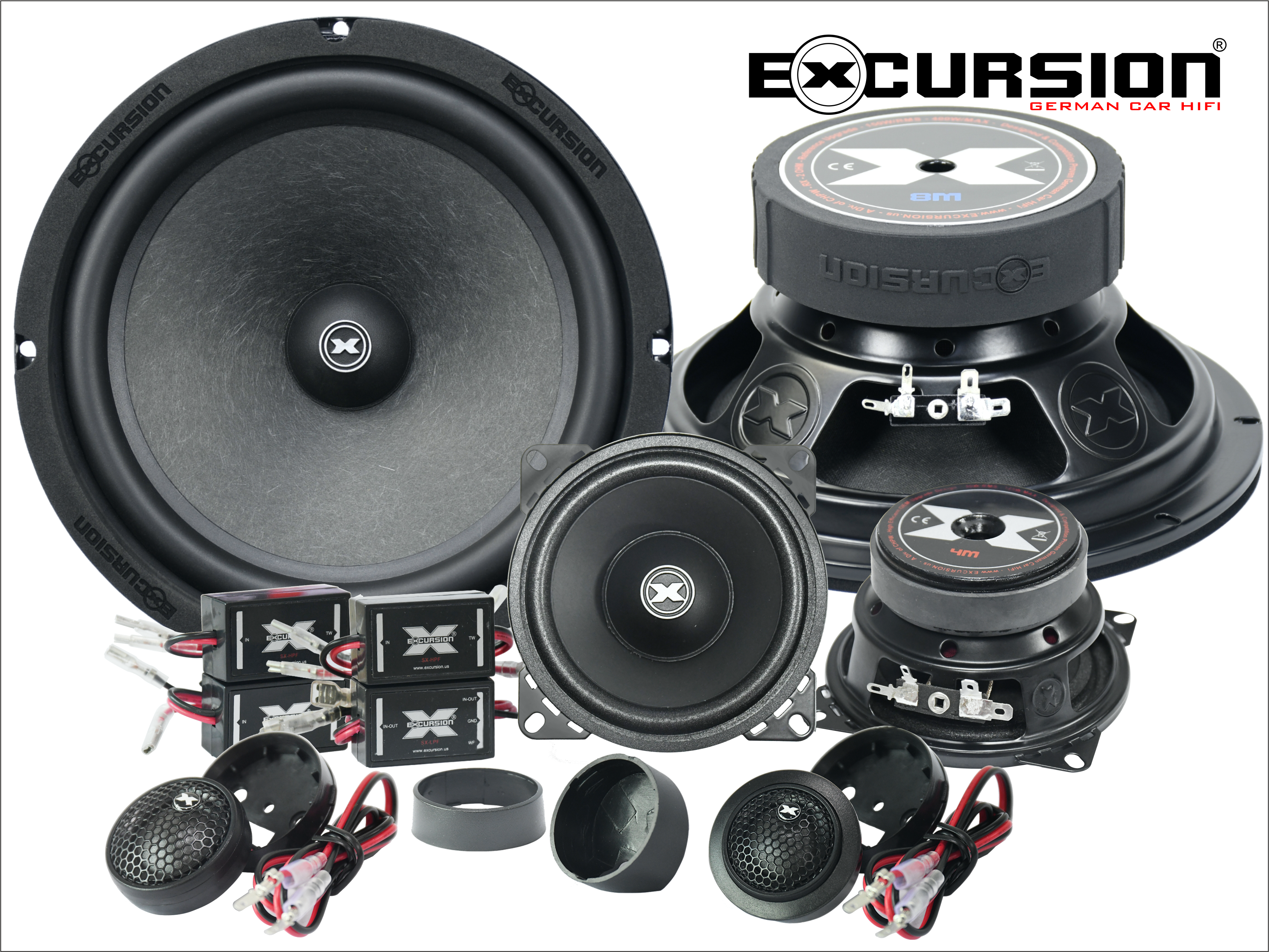

SX 4C - 10cm DIN 2Wege Component System
* 20mm high resolution Silk Dome Tweeter
* 2-layer paper ADC cone (Activ Damping Coating) decrease resonance and improve stiffness
* Double pressed, UV threated foam surround, asure the longlife of the Loudspeaker.
* EFF motor structure (Efficient Flux Field) for high efficiency at less power (radio).
* Carefully crafted copper wire Voice Coil wound on top vented aluminium former.
* Rigid tooled and stiffened and bottom vented Excursion Design steel basket.
* Continous pole piece drilling suppot once more cooling and avoid compression behavior.

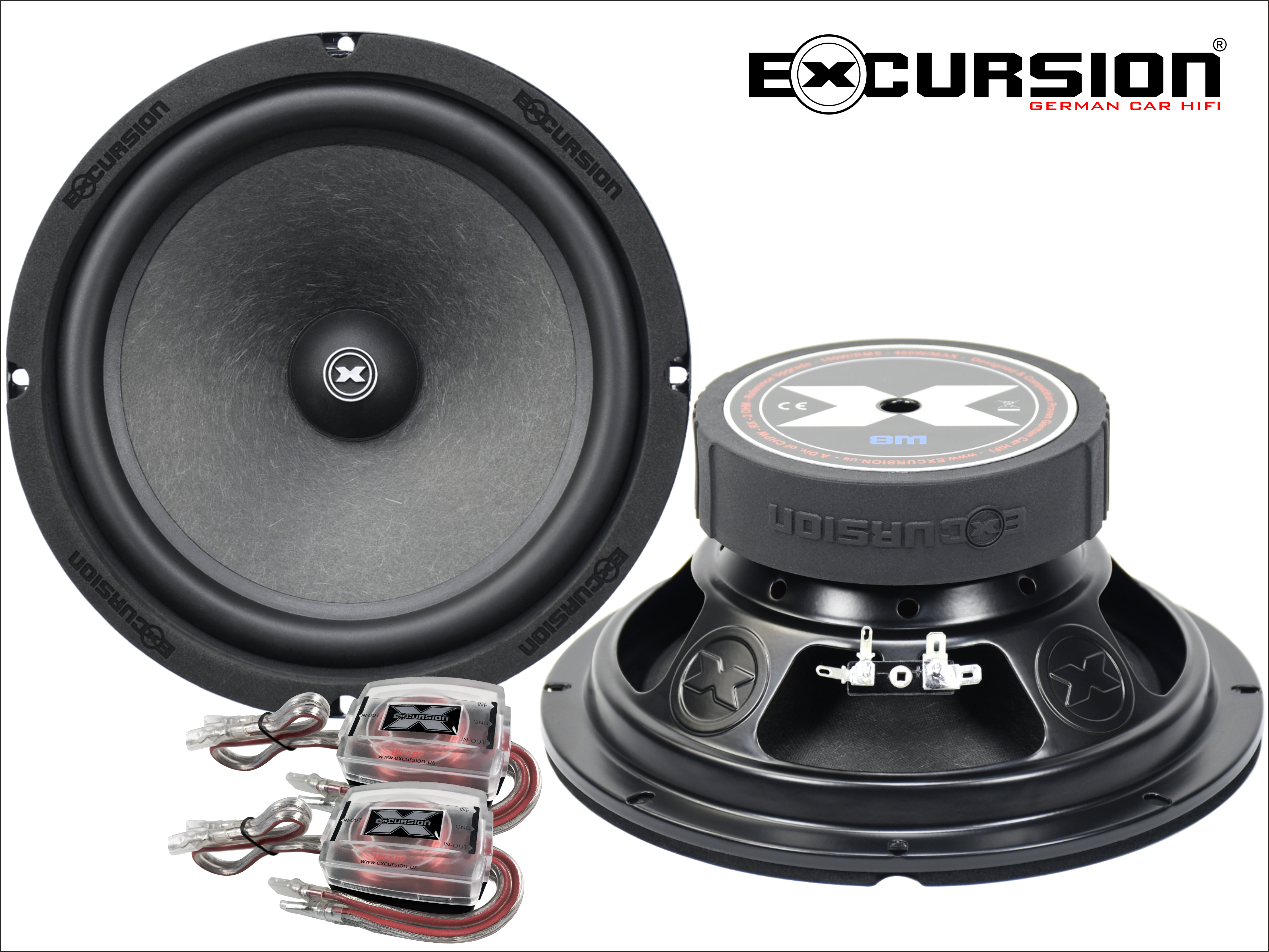

RX 8M - 20cm High End Midbass Loudspeaker
* 1.2" / 30.5 mm Copper VC @ top vented Kapton Former
* 60 Oz Motor Structure w. high grade Y35 Ferrite Magnet
* Dual Layer natural vital Wool Cone with Glasfibre stripe reinforcments and ADC Coating
* HDR (High Density & High Roll ) Rubytec Surrounds
* Phase Plugged Excursion Dustcap Design
* Pole Piece and bottom vented Excursion Steel Basket
* Selective high extension handcrafted NOMEX Spider
* PX-LPF Plug Crossover w. 14GA tinned OFC speaker cable.
Fs: 40Hz
SD: 216,8 sqCM
Vas: 38,55 Ltr
Cms: 590 µM/N
Mms: 18,5 g
Bl™: 5.64
Qms: 2.55
Qes: 0.35
Qts: 0.3
* praxis born Inline passiv Filter with 3M Sticker and minimized Dimension (50x37x24mm).
Shipping:
- 2 pc SX-2S
- 2 pc SX-4M
- 2 pc RX-8M
- 2 pc SX-HPF
- 2 pc SX-LPF
- 2 pc PX-LPF
- 2 pc PX-WFA (80cm 14GA tinned OFC Speakercable with PX Connectors)
- Owner Manual
Optional:
- 2x PXI AG (Aluminium Globes for the PX-1S)
- 2x PXI AD (polished Aluminium Deco Ring for the PX-3M in visual combination with PXI AG aluminium Globes of the PX-1S)

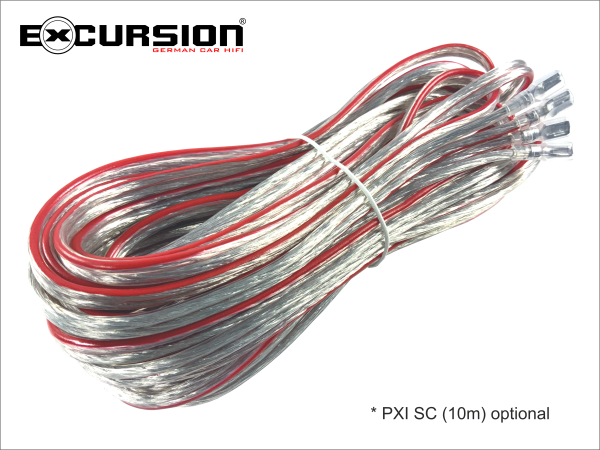

- 1x PXI SC (10m 14GA tinned OFC orign quality PX System Speakercable with PX Connectors)
- 2x PXI GR6 (Hexagon Protection Grill)
Since 2014 EXCURSION offer a praxis born range of Loudspeaker, Subwoofer and Amplifiers based on 30years of experience and engineering. Design, Innovation and Improvements are sourced from all those Challenges of the Car Audio Competition Associations all over the world. This selection of leading and winning high technology route direct into our product lines in order to offer a wide range of consumers Know How and Value which they could usually not access. With german leadership in the global production our authorizied EXCURSION factory partners leave no doubt to meet standards we as german brand are expected for.
Next to an unbeatable Price Performance the praxis form follow function philosophy mirror the prior target motivation of EXCURSION. Everything of past and presence is taken into doubt first, in order to get rethought with all its Details again for a further improve in result. Those results like compact mini sized high technology SMD or CHIP built car audio amplifiers who can meet military standards in caftmansship or new age Plug & Play concepts going through all steps in the line of amplifier till speaker, keeping always flexbile ENERGETIC upgrade improvements or optional upgrade with professional multichannel DSP or BlueTooth connection for a lossless High End streaming via your personal Smart Phone.
With selection of the highest technology global factory partners we at EXCURSION follow and guarantee a tradition of value and exellence for our products. This without mark ups to our car audio customer for horrible marketing and lobby pampering expenses or any half naked women in order to attract more than the value or performance those products mostly can have. We believe or challenge start after you have closed your eyes, after installation & purchase and be asured we love to get compared .... and even more if you comment and let us know about your judging.
EXCURSION …is all you need
